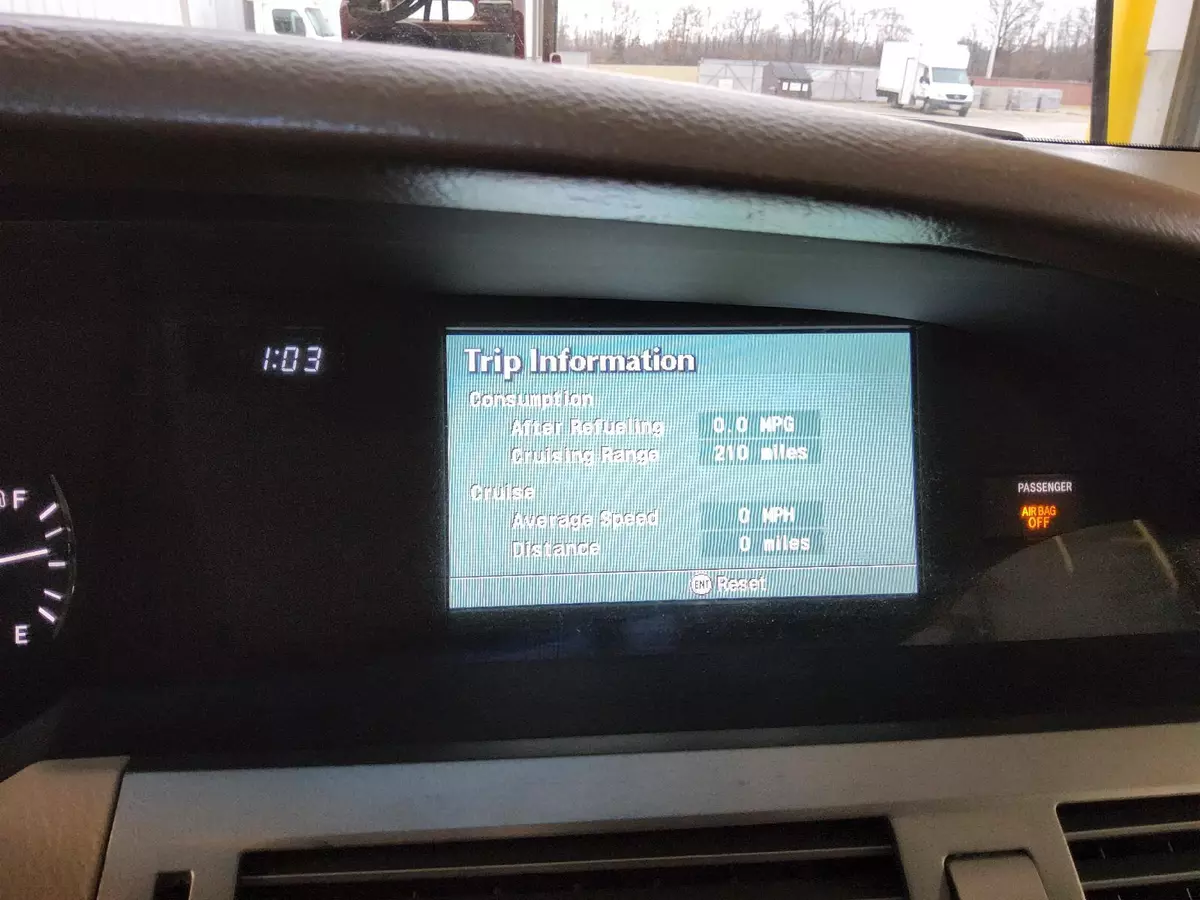

Having a display that shows you all the necessary information is a really cool feature. It provides a much better driving experience. But when the display stops working, driving becomes hell.
So, why is your Toyota Avalon display not working anymore?
In most cases, the reason behind your display not working is a faulty fuse. Also, your display and head unit can be defective and cause this issue. Also, there’s a fair chance that your system might have bugged. Finally, if these don’t work for you or seem hard to do, hire an electrician.
Well, this is only a preview of the whole discussion. Stay with us till the end if you want to learn more.
Why Is Your Avalon Display Not Working
Some of the methods might seem a bit complex to execute. However, they are not and you can fix them without breaking a sweat. So, we advise you to take a little breath before you start.
That being said, let’s hop on the wagon and head right in –
Fixes #1: Faulty Fuses Can Ruin Your Display
A fuse is the weakest link of the circuit. It protects the system from short circuits. Luckily, they are very easy to check and replace.
To check on the fuse, we have to open the passenger compartment box first. This may seem a little complex to you. And if it does, don’t hesitate to take it to an electrician.
However, if you’re interested in a little DIY, you can follow these instructions.
Check the Fuses
The compartment box is located on the left side and behind the steering wheel. This is common for all Avalon models.
To help you out, we have provided the fuse numbers according to your Avalon model.
2000-2004 Toyota Avalon
If you’re the owner of this model, the fuse you’re looking for is 36 and 40.
Fuse 36 is a fuse for an audio system and multi-information display. Similarly, Fuse 40 is also another fuse for multi-information display and radio systems.
So, check on these fuses to rule them out.
2005-2012 Toyota Avalon
2005-2012 Avalon models have three different fuses. However, two of them are in the engine compartment box. Just open the hood and you’ll see it on the left side.
For this car, open the engine compartment box and check the fuses 15 and 16. Then open up the passenger compartment box and find fuse 17.
Likewise, for 15 and 16, you need to open the engine compartment and fix it from there.
2013-2018 Toyota Avalon
If you’re using this car, the fuses you need to check are 21 and 34.
Both of them are inside the passenger compartment and easy to access. Fuse 21 is for the audio and display system.
Likewise, the 34 is a fuse mainly for the panel. But it also is a fuse for display so it has to be checked as well.
Make sure to be very careful while changing the car fuse. Before you move on to replacement, get a box of fuses. They are very cheap.
Here are some of our recommendations to make this easier for you –
Now, you can easily get one and start working!
Fixes #2: Bad Display or a Bad Head Unit
We have already checked the fuses, so it’s time to go a little bit deeper. So, there are now three other possibilities related to display and head unit.
- Your head unit is faulty
- The backlight of your display has problems
- The display itself is defective
Hire a Mechanic
Unfortunately, in all three cases, you have to take them to an electrician for repair. However, you can unplug the wiring harness and check the head unit’s wiring for yourself.
But in most cases, you’ll have to get an aftermarket head unit if it’s done for. However, if your service plan still has some time left, don’t hesitate to claim it. The same goes for the display unit as well.
Fixes #3: Software Bugs Can Freeze Your Display
There are many occasions where Avalon users reported that their display has bugged. So, you have to tread lightly if this is the case.
Check the Fuse Box and Wiring
The fuse system which we’ve already explained also covers this bug problem. Just detach the related fuse and then reattach it after 5-10minutes.
Now, restart your car and check whether your display boots up or not.
However, you can also detach the display panel and see the wiring for yourself.
Finally, all of these may seem too much of a hassle to you. In that case, you can just call for an electrician or a mechanic.
Frequently Asked Questions
How do I reset my Toyota Avalon computer?
First, open the hood of your car and make sure your ignition is turned off. Then get a hold on some pliers or simply a wrench. Now, detach both negative and positive cables from the battery. Wait around for 5-6 minutes and then reconnect the wires. Now, start the car and your computer should be reset.
Where is the fuse box on a Toyota Avalon?
All versions of Toyota Avalons have their fuse boxes on the bottom-left side. Just look for the instrument panel and then check below.
What is a Toyota heads-up display?
Recent Toyota cars come with an innovative heads-up display. You can easily view important information like driving speed, warnings, and temperature. It severely enhances your driving experience.
What should I do if my Toyota Avalon’s display is frozen or unresponsive?
If the display is frozen or unresponsive, try performing a soft reset by turning off the vehicle and disconnecting the battery for a few minutes. Reconnect the battery, start the car, and check if the display functions normally. This action can sometimes resolve temporary software glitches.
Can I replace the display unit myself if it’s beyond repair?
While it’s possible to replace the display unit yourself, it’s recommended to have this done by a professional technician to ensure proper installation and compatibility. Installing a new unit incorrectly might lead to further issues. If you choose to replace it yourself, follow the manufacturer’s guidelines meticulously.
Conclusion
In conclusion, addressing the issue of a non-responsive display in your Toyota Avalon involves straightforward solutions that can save time and frustration. By considering simple fixes like checking power connections, resetting the system, or inspecting for software glitches, Avalon owners can swiftly resolve display problems, ensuring uninterrupted access to essential vehicle information and features.
And that’s everything we could come up with regarding your Toyota Avalon display not working. Hopefully, this has satisfied your curiosity, even a little bit.
So, were you able to fix your display?
If you have other solutions or ideas, don’t hesitate to use the comment section below.
Last but not least, best of luck!
